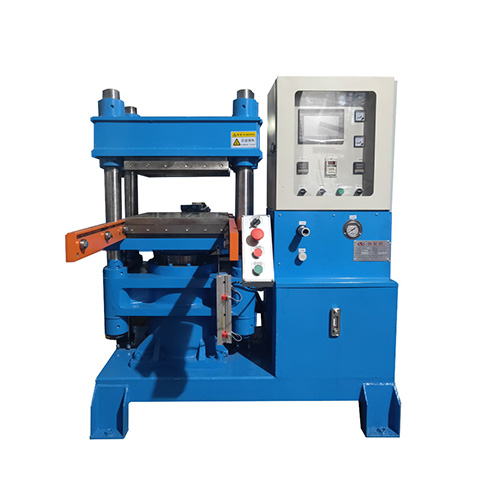

Rubber Heat Press Machine

Rubber Heat Press Machine is mainly used for the compression molding and vulcanization of rubber products. Through high temperature and high pressure environment, this equipment can effectively improve the strength, wear resistance and weather resistance of rubber materials, while ensuring the product surface is smooth and the size is accurate. It is widely used in the production of rubber seals, rubber gaskets, rubber soles and other rubber products, and is an indispensable key equipment in the rubber manufacturing industry.

The YX-LG100T-1 Rubber Heat Press Machine is engineered for efficient rubber molding and curing. It features a robust structure with a four-column design and offers both single-head and double-head configurations for versatile application.

 The machine is equipped with hot plates measuring 450 x 450 mm, providing a substantial surface area for processing various rubber products.

The spacing between the hot plates is 250 mm x 250 mm, allowing for flexible placement of molds.

 With a cylinder diameter of 250 mm, the machine can apply substantial pressure for optimal curing results.

Its four-column design ensures stability and uniform pressure distribution during the molding process.

Capable of operating at a system pressure of 18 MPa, this press ensures effective compression and curing of rubber materials.

The machine utilizes imported electric heating tubes for consistent and reliable temperature control, enhancing the quality of the finished products.

It operates on a power supply of 380V and 150Hz, supporting efficient and stable performance.

Overall, the YX-LG100T-1 is a high-performance machine ideal for producing high-quality rubber components, ensuring precision and durability in every press.

Features of Rubber Heat Press Machine

This machine is equipped with a 450 x 450 mm hot plate with a 250 mm x 250 mm hot plate spacing, which can provide uniform heating and efficient pressing performance. The 250 mm cylinder diameter ensures sufficient pressure for molding and vulcanization of various rubber products.

Equipped with a 13 kW motor, it provides strong power support, ensuring stable operation and efficient production. The body weight reaches 1700 kg, ensuring the stability and long service life of the machine.

The PLC control system is adopted, which can achieve precise operation and automatic control. The system provides reliable performance and a simple operation interface to ensure the efficiency and consistency of the production process.

The system pressure can reach 18 MPa, which can handle the rubber pressing needs under high pressure conditions. This pressure level supports the production of a variety of rubber products and ensures the quality and consistency of the finished product.

Use imported electric heating tubes to provide stable and uniform heating and ensure the accuracy of temperature control. This function is crucial to the vulcanization process of rubber materials and helps to improve the quality of the final product.

The machine is suitable for multiple industries such as hotels, mechanical repair workshops and home use, demonstrating its versatility and wide adaptability.

The four-column structural design not only improves the stability of the machine, but also ensures uniformity during the pressurization process. The single-head and double-head configuration options provide flexible production options to meet different production needs.

The equipment provides video factory inspection and mechanical test reports to ensure that the products undergo strict quality control before leaving the factory, increasing the confidence of purchase and use.

The core components and the whole machine provide a 1-year warranty service to ensure equipment maintenance and support during use.

With its advanced design, powerful performance and reliable control system, the YX-LG100T-1 Rubber Heat Press Machine is an ideal choice for rubber product manufacturing.

FAQ

What are the main faults of Rubber Heat Press Machine?

Uneven heating, unstable pressure, hydraulic system leakage, control panel failure, and wear or damage to the surface of the hot plate. Solving these problems usually requires checking and repairing the heating system, hydraulic system, and electronic control system.

Why is the temperature of the heating plate unstable?

Temperature instability may be caused by a variety of reasons, including aging or failure of the heating tube, failure of the thermostat, damage to the insulation layer of the heating plate, or poor heat conduction. Checking and replacing the faulty heating tube, ensuring that the thermostat works properly, and repairing the insulation layer can solve this problem.

Why is the pressure of the machine insufficient?

Insufficient pressure may be caused by hydraulic system leakage, pressure regulating valve failure, or insufficient hydraulic oil. Check the tightness of the hydraulic system to ensure that there is no leakage, and check and replenish the hydraulic oil regularly.

How to maintain the Rubber Heat Press Machine to extend its service life?

Regularly check and clean the heating plate to ensure the normal operation of the heating tube and thermostat. Regularly replace the hydraulic oil, check the tightness of the hydraulic system, keep the machine dry and avoid corrosive environments. The machine should also be calibrated regularly to ensure accuracy.

What should I do if the surface of the hot plate is unevenly worn?

Uneven wear on the surface of the hot plate may be caused by long-term high-temperature use or improper operation. Check the status of the hot plate regularly, and repair or replace the hot plate if necessary to ensure uniform heating.

How to solve the problem of abnormal noise when the machine is running?

Abnormal noise may be caused by loose or worn parts of multiple parts, such as hydraulic pumps, heating system components, or mechanical transmission parts. Check and tighten all loose parts and replace worn parts in time to eliminate abnormal noise.

What should I do if I encounter electronic control problems during machine operation?

Electronic control problems are usually related to the electronic control panel, wiring, or power supply. Check the settings of the electronic control panel and whether the connecting wires are loose or damaged, and ensure that the power supply is stable. If the problem persists, professional technicians may be required to repair or replace the electronic control components.

How to adjust the pressure setting of the machine?

The pressure setting is usually adjusted by a pressure regulating valve. According to the machine's operating manual, adjust the valve to set the desired pressure level. Adjustments should be made slowly and monitored with a pressure gauge to ensure the accuracy of the settings.
