Understanding the Working Principles of Two Rolling Machines

Two rolling machines are mechanical devices utilized in various industries for shaping metal sheets or other materials through a process known as rolling. These machines play a crucial role in manufacturing processes, enabling the production of a wide range of products with precision and efficiency. This article delves into the working principles of two common types of rolling machines: the two-roll mill and the two-roll plate bending machine. By understanding how these machines operate, one can appreciate their significance in industrial applications.

Two-Roll Mill:

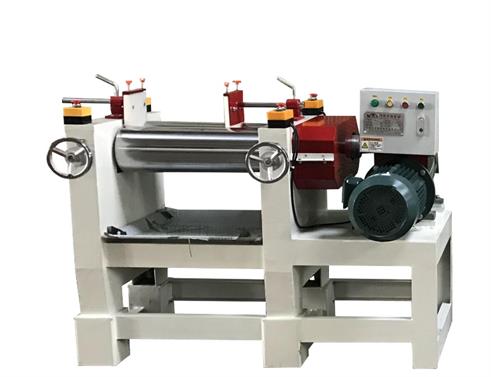

The two-roll mill, also known as a two-roll mixing mill or simply a rubber mill, is primarily used in the rubber and plastic industries for mixing and refining materials. It consists of two horizontally positioned parallel rolls that rotate in opposite directions at varying speeds. The key components and working principles of a two-roll mill are as follows:

a. Rolls: The rolls are typically made of hardened steel and have a smooth or grooved surface. They serve as the primary working elements of the mill, exerting pressure on the material being processed.

b. Milling Process: The material to be processed, such as rubber compound or plastic resin, is fed into the gap between the two rolls. As the rolls rotate, they draw the material into the nip or bite point, where it undergoes deformation and mixing.

c. Friction and Shear: The rotation of the rolls generates frictional forces between the material and the roll surfaces, causing the material to deform and flow. This action promotes mixing, dispersion, and homogenization of additives or fillers present in the material.

d. Temperature Control: Temperature control is crucial in the two-roll milling process, especially for thermosensitive materials like rubber. Cooling or heating mechanisms may be employed to maintain the desired temperature and prevent overheating or premature curing.

e. Roll Adjustment: The distance between the rolls, known as the roll gap or clearance, can be adjusted to control the thickness and properties of the processed material. Precise roll adjustment ensures uniformity and consistency in the final product.

f. Safety Measures: Safety measures such as guards, emergency stop buttons, and interlocking systems are implemented to protect operators from hazards associated with the rotating rolls and moving parts.

Two-Roll Plate Bending Machine:

The two-roll plate bending machine, also referred to as a double pinch roll plate bending machine, is used in metalworking applications to bend and form metal plates or sheets into cylindrical or curved shapes. It employs a hydraulic or mechanical mechanism to apply bending force to the workpiece. The key components and working principles of a two-roll plate bending machine are as follows:

a. Upper and Lower Rolls: The machine features two main rolls, an upper roll and a lower roll, which are hydraulically or mechanically driven and operate in tandem to bend the workpiece.

b. Pre-Bending and Rolling: The plate to be bent is positioned between the upper and lower rolls, with the leading edge protruding beyond the rolls. The initial pre-bending step involves bending the leading edge to a predetermined angle to facilitate the subsequent rolling process.

c. Pinch Point Adjustment: The distance between the upper and lower rolls, known as the pinch point or bending radius, can be adjusted to accommodate different plate thicknesses and bending radii. This adjustment ensures optimal bending performance and accuracy.

d. Three-Roll Configuration: Some two-roll plate bending machines feature a third roll, known as the side roll or lateral roll, which assists in the bending process by providing additional support and controlling the material deformation.

e. Bending Sequence: The bending sequence typically involves multiple passes, with the workpiece gradually fed through the machine to achieve the desired curvature. The bending force applied by the rolls causes plastic deformation of the material, resulting in the desired shape.

f. Roll Positioning and Alignment: Proper alignment and positioning of the rolls are essential for achieving uniform bending and preventing material distortion or wrinkling. Hydraulic or mechanical adjustments may be used to ensure precise roll alignment.

g. Control Systems: Modern two-roll plate bending machines are equipped with advanced control systems that allow operators to monitor and adjust bending parameters such as roll pressure, speed, and positioning. These systems enhance productivity and accuracy while ensuring operator safety.

Two rolling machines, including the two-roll mill and the two-roll plate bending machine, play pivotal roles in diverse industrial processes, from rubber and plastic manufacturing to metalworking and fabrication. By understanding the working principles and key components of these machines, manufacturers and operators can optimize their performance, achieve desired outcomes, and ensure safety and efficiency in production environments.
