Silicone Cutting Machine for Sale
  • Silicone Cutting Machine for Sale
Silicone Cutting Machine for Sale

Silicone Cutting Machine for Sale

Silicone cutting machines are used to cut sealing rings, gaskets, thermal conductive sheets, silicone toys, kitchen utensils, etc. They are widely used in electronics, automobiles, medical, food, home appliances and other industries, and support high-precision automated cutting of a variety of silicone materials.
  • Product Description

Silicone cutting machine is an automated equipment specially used for cutting various types of silicone materials. It is suitable for the precise processing of foamed silicone, solid silicone, composite silicone, mixed silicone and molded silicone products. Through cold cutting, hot cutting, reciprocating knives or laser cutting technology, high-speed, high-precision and batch cutting of silicone products can be achieved. It is widely used in the mass production and customization of silicone parts in the electronics, automobile, medical, food, home appliances, daily necessities and other industries.


Glue cutting machine technical parameters

Maximum processing width

1~5000mm

Maximum cutting width

1~5000mm

Maximum thickness

15mm

Top speed

68 times/minute

Working power supply

380V/50HZ

Total weight

220KG

Machine size

1100*850*1050mm

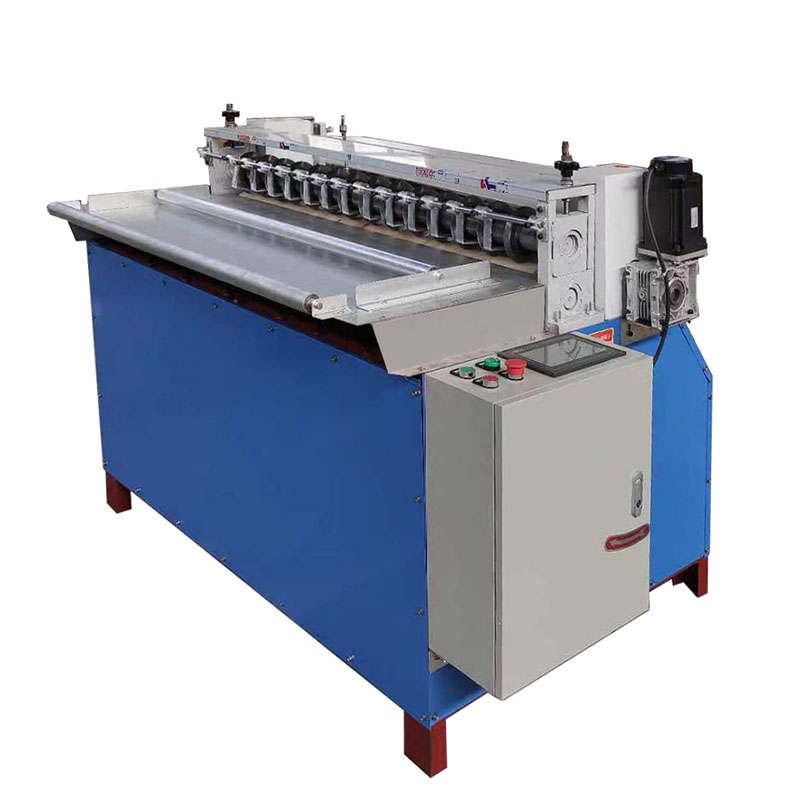

1697538773475047




Material:

Body structure: high-strength carbon steel or stainless steel, some with dust-proof spray treatment to ensure long-term stable operation in different workshop environments.

Tool system: According to cutting requirements, the tool can be tungsten steel, high-speed steel, ceramic or laser module, and supports customized replacement.

Transmission device: with ball screw, guide rail, stepper/servo motor system to ensure repeated cutting consistency.

Table material: Commonly used is anti-stick PVC table or vacuum adsorption platform to ensure stable feeding.

Control system: integrated PLC programming and touch operating system, supporting Chinese interface and multi-task adjustment.




Application:

1. Electronic and electrical industry

Used for cutting silicone seals, insulating pads, thermal conductive silicone gaskets, etc. required in electronic products.

Meet the requirements for high dimensional accuracy, smooth edges, and strong batch stability.


2. Automobile industry

Cutting automotive-grade silicone materials for automobile lights, waterproof gaskets, door dustproof strips, and interior components.

Improve the level of automation and adapt to large-scale, high-consistency production.


3. Medical device field

Precision cutting of medical-grade silicone catheters, silicone plugs, silicone gaskets, mask seals, etc.

Meet medical standards such as pollution-free, dimensional accuracy, and smooth edges.


4. Food and supplies industry

Cutting food-grade silicone pads, silicone molds, and baby products (such as pacifiers and supplementary feeding tools).

The equipment supports oil-free and dust-free cutting to ensure product cleanliness.


5. Home appliances and daily necessities

Used for cutting silicone kitchen supplies, electronic product seals, remote control buttons, daily anti-slip mats, etc.

Ensure beautiful appearance, good feel, and precise structural dimensions.


6. Crafts and cultural and creative industries

Processing creative products such as silicone bracelets, silicone key chains, silicone toys, mobile phone cases, etc.

Flexible cutting, customizable special-shaped contours according to design graphics.


7. Industrial seals industry

Processing silicone gaskets, O-rings, special-shaped sealing sheets, etc. for various industrial equipment.

Neat incisions and no deformation of edges effectively improve sealing performance.




Features:

Multiple cutting modes: compatible with straight cutting, bevel cutting, circular cutting, special-shaped cutting, composite special-shaped path cutting, etc.

High compatibility: suitable for silicone materials of different hardness, density, and form, including foam, solid glue, adhesive layer composite materials, etc.

High-speed operation capability: Some models support high-speed reciprocating cutting of more than 200 times/minute, significantly improving production capacity.

Precise cutting control: The servo control system combines photoelectric sensing or CCD visual positioning, and the error is controlled between ±0.05 and ±0.3mm.

Humanized interface: high-definition touch screen control system, multiple recipe storage, fast batch switching, support for graphic import.

Automatic feeding system: with belt conveyor or roll-to-roll feeding device, unmanned continuous cutting can be realized.

Integrated design of cold cutting and hot cutting: automatically select appropriate cutting temperature and pressure according to material characteristics.

Power-off memory function: the cutting process can be automatically restored after an unexpected shutdown without manual reset.




Advantages:

Greatly improved efficiency: compared with manual cutting, the average efficiency of automated equipment is 300% to 500%, which meets the high-beat production rhythm.

High dimensional consistency: all cut products have the same size, which improves the qualified rate of finished products and reduces material waste.

Reduced manual dependence: one person can operate multiple machines, which is suitable for enterprises to reduce costs and increase efficiency and smart factory transformation needs.

The finished product has smooth edges and no burrs: especially suitable for electronic and automotive parts with high requirements for appearance and sealing.

Stable equipment operation: solid structure, mature electronic control system, suitable for 24-hour continuous operation environment.

Easy maintenance and long life: The service life of key components is up to 5 to 10 years, and daily maintenance mainly includes cleaning and lubrication.

Compatible with non-standard customization: The structure, software, and functions can be deeply customized according to the customer's product style and cutting trajectory.

Environmentally friendly and low-noise design: The noise during operation of the equipment is less than 75 decibels, which meets the safety standards of most industrial environments.




FAQ:

What silicone materials and product types are suitable for silicone cutting machines?

Suitable for materials such as foamed silicone, solid silicone, compound rubber, composite silicone, food-grade silicone, etc. Products include sealing rings, gaskets, strips, pipes, keyboard membranes, medical accessories, silicone toys, kitchenware pads, etc. The cutting method can be selected according to the material and product thickness. Cold cutting, hot cutting, reciprocating cutting or laser cutting.


Will the silicone cutting machine cause sticking or not cutting cleanly due to the soft and sticky material?

High-end silicone cutting machines are equipped with anti-stick coated blades or heated blades to prevent silicone from sticking due to improper temperature or pressure. Some equipment also has dynamic temperature control technology, which automatically adjusts the cutting temperature according to the material density to ensure smooth edges and clean cuts. At the same time, it is equipped with a dust suction or blowing system to effectively remove the debris generated during cutting.


How thick silicone materials can this equipment cut?

Conventional equipment supports cutting thicknesses ranging from 0.3mm to 30mm; some customized models can reach more than 50mm. For extremely soft or extremely thick materials, it is recommended to select a pressurizing device or a double-knife system to ensure uniform cutting. The equipment does not require complex adjustments when switching thicknesses, and only requires setting parameters through the touch interface.


Does it require professional technical background to operate a silicone cutting machine?

The equipment is equipped with a Chinese operating system and a graphical interface, and non-professionals can get started after short-term training. All parameters such as cutting length, speed, temperature, and knife pressure can be preset and stored, and batch order switching is simple. Some models also support scanning and reading production work orders to achieve automatic parameter adjustment and reduce human errors.


Will the silicone cutting machine cause a decrease in accuracy due to long-term use?

The servo motor, guide rail and knife holder system of high-quality equipment are designed for high-intensity loads and can maintain cutting accuracy for a long time. Daily lubrication, dust removal and tool replacement only need to be performed periodically. If there is a slight deviation, the tool position can be automatically calibrated through the software to ensure the stable dimensional accuracy of each batch of products.
