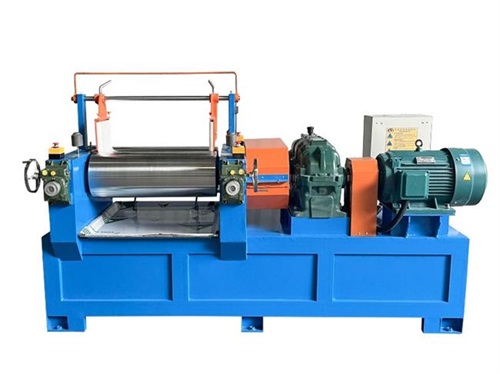

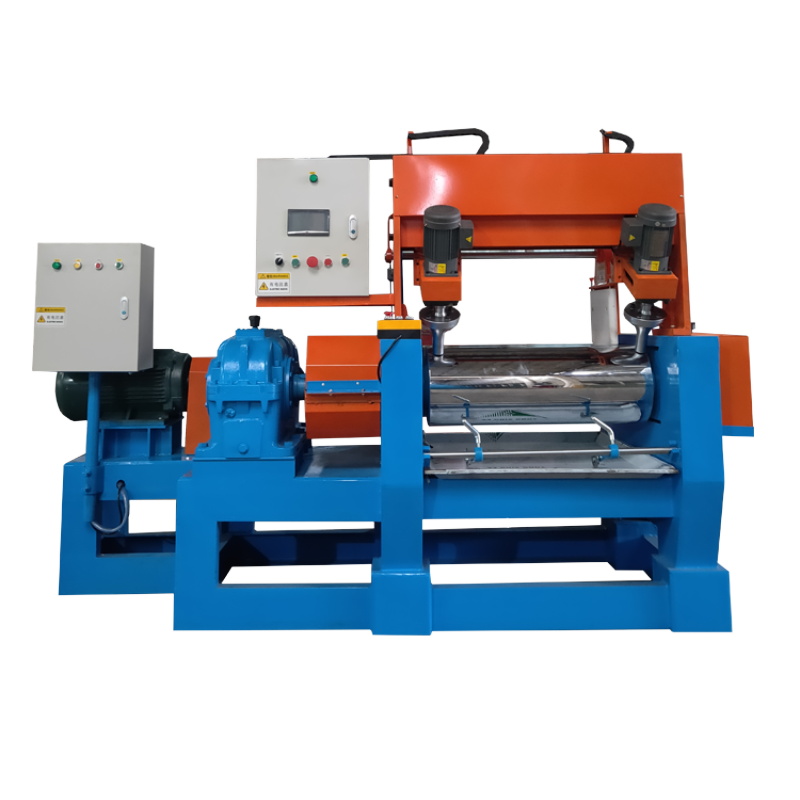

What is a Two Roll Mill?
Two Roll Mill, also known as a double roller mill, is a device commonly used for mixing, dispersing and homogenizing highly viscous materials. Its main structure consists of two horizontally placed rollers with adjustable gaps. The two rollers exert shear force on the materials through high-speed rotation, thereby achieving mixing, grinding and homogenization of the materials. The two-roll mill has a simple structural design and flexible operation. It is a commonly used mixing equipment in laboratories and small-scale production.
Features of Two Roll Mill:
1.Hard tooth surface noiseless reducer :Gears are made of high quality alloy steel, carburized and quenched, high hardness of tooth surface, strong bearing capacity, high transmission efficiency, low noise, more precise bearing coefficient and wear resistance, normal use for 10 years will not be damaged.
2.Direct link drive:A patented transmission method, the use of flexible couplings, stable and strong torque more energy efficient and power saving, gears are not easy to wear.
3.High hardness chrome-plated roller :roller is made of high strength steel, which is processed by quenching - outer circular
grinding - electroplating hard chromium - outer circular grinding - mirror polishing, so that it does not stick, does not
delamination, does not deformation, and never rust
Model | XY-XK300 |
Diameter of Roll(mm) | 300mm |
Length of Roll(mm) | 800mm |
Maximum roll distance(mm) | 12mm |
Single feed | 20-60KG |
Power | 15KW |
Rotation Speed of Front Roll(rpm) | 20r/min |
Roll speed pattern | Constant speed (adjustable speed/double adjustable speed) |
Bearing situation | Insert bearing |
Reducer casing | planet-gear speed reducer |
Voltage | 380V |
Weight | ~2500KG |
Dimension(L*W*H) | 2700*1100*1600mm |
Essential details | |||
Diameter of Roll(mm) | 300 mm, 300mm | Warranty | 1 Year |
Rotation Speed of Front Roll(rpm) | 1 - 20 rpm, 20r/min | Key Selling Points | Long Service Life |
Length of Roll(mm) | 800 mm, 800mm | Power (kW) | 15 |
Roll Ratio(Front/Back) | 1:1.25 | Weight (KG) | 2500 KG |
Video outgoing-inspection | Provided | Applicable Industries | Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory |
Machinery Test Report | Provided | Showroom Location | None |
Warranty of core components | 1 Year | Model | XY-XK300 |
Core Components | Motor | Maximum roll distance(mm) | 12mm |
Cooling Mode | water cooling | Single feed | 20KG-60KG |
Condition | New | Power | 15KW |
Place of Origin | Guangdong, China | Roll speed pattern | Constant speed (adjustable speed/double adjustable speed) |
Voltage | A.C.380V 50HZ | Bearing situation | Insert bearing |
Dimension(L*W*H) | 2700*1100*1600mm | Reducer casing | planet-gear speed reducer |
Year | 2020 |
Core application areas and applications
(1) Polymer and rubber mixing
Application: In the plastic and rubber industries, it is used to evenly disperse pigments, fillers, and additives into the base material to improve the processing performance of the material and the physical properties of the final product.
Advantage: High shear force can effectively disperse tiny particles and ensure mixing uniformity.
(2) Preparation of inks, coatings and adhesives
Application: Used to prepare pigments and resin premixes in products such as inks, coatings, adhesives, etc.
Advantage: The double-roll mill can achieve uniform dispersion of fine particles and improve product stability and performance.
(3) Cosmetics and food industries
Application: In cosmetics and food processing, it is used to process viscous emulsion systems, jams, chocolates and other materials.
Advantage: Gentle shearing helps to maintain the activity of ingredients while ensuring that the product texture is fine and uniform.
(4) Laboratory research and development and small-batch production
Application: As a tool for formula development and small-batch production, it helps engineers quickly test different mixing ratios and process parameters.
Advantage: Easy operation and easy control of parameters help to develop new materials and optimize processes.
Maintenance points
(1) Daily cleaning and maintenance
Cleaning: After each operation, the rollers and residues in the machine should be thoroughly cleaned to prevent cross contamination, especially when handling food and cosmetic materials.
Residue removal: Regularly check the roller surface to prevent hardened residues from accumulating and affecting the mixing effect.
(2) Adjustment and testing
Roller gap adjustment: According to the characteristics of different materials, regularly check and adjust the roller gap to ensure the best mixing effect.
Temperature monitoring: During operation, the equipment temperature should be monitored in real time to avoid material degeneration or equipment damage due to overheating.
(3) Mechanical component maintenance
Lubrication: Regularly add appropriate lubricating oil to the bearings, gears and transmission systems to reduce friction and wear and extend the life of the equipment.
Wear inspection: Regularly check the wear of the rollers and transmission parts, and polish or replace them when necessary.
(4) Safety and automated maintenance (new trend in 2025)
Intelligent monitoring: With the development of Industry 4.0 and intelligent manufacturing, the two-roll mill in 2025 will generally integrate Internet of Things (IoT) sensors to achieve real-time monitoring of key parameters (such as temperature, speed, vibration), thereby predicting faults and performing maintenance in advance.
Remote diagnosis: The new generation of equipment can diagnose the equipment status online through the remote monitoring system, feedback fault information in time, and reduce downtime.
Automatic adjustment: The intelligent control system can automatically adjust the roller gap and speed according to the preset process, improve production efficiency and product consistency, and reduce the workload of operators.
Energy saving and environmental protection: In 2025, the equipment will also have significant improvements in energy-saving design, noise control and safety protection, and will be more in line with green production requirements.
Two Roll Mill is widely used in plastics, rubber, ink, coating, adhesive, cosmetics and food industries due to its high efficiency mixing, homogenization and dispersion. Maintenance work mainly focuses on daily cleaning, roller gap adjustment, mechanical lubrication and regular inspection. In 2025, with the popularization of intelligent manufacturing and Internet of Things technology, double-roller machines will usher in new breakthroughs in equipment monitoring, fault prevention, automatic control, energy conservation and environmental protection, further improving their application efficiency and safety.
